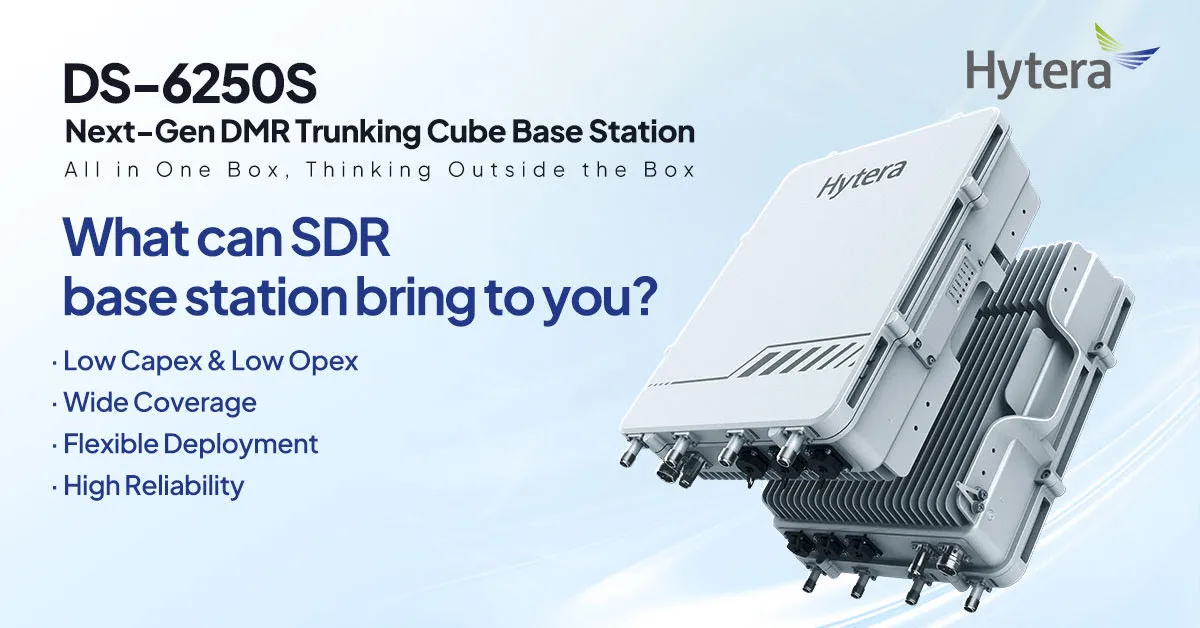

Hytera DS6250S DMR Trunking Digital Base Station - Promo 1 Hytera DS6250S DMR Trunking Digital Base Station - Promo 2
Hytera DS6250S DMR Trunking Digital Base Station - Promo 1

Specifications

General

Standards Compliance
DMR (Tier III)
Frequency Range
UHF1: 415–445 MHz; VHF: 136–174 MHz
Carrier Capacity
UHF: up to 8 carriers; VHF: up to 4 carriers (overall capacity table: 8, expandable to a maximum of 24)
Carrier Spacing
≥50 kHz
Duplex Spacing
VHF: 5.3 MHz; UHF: 10 MHz

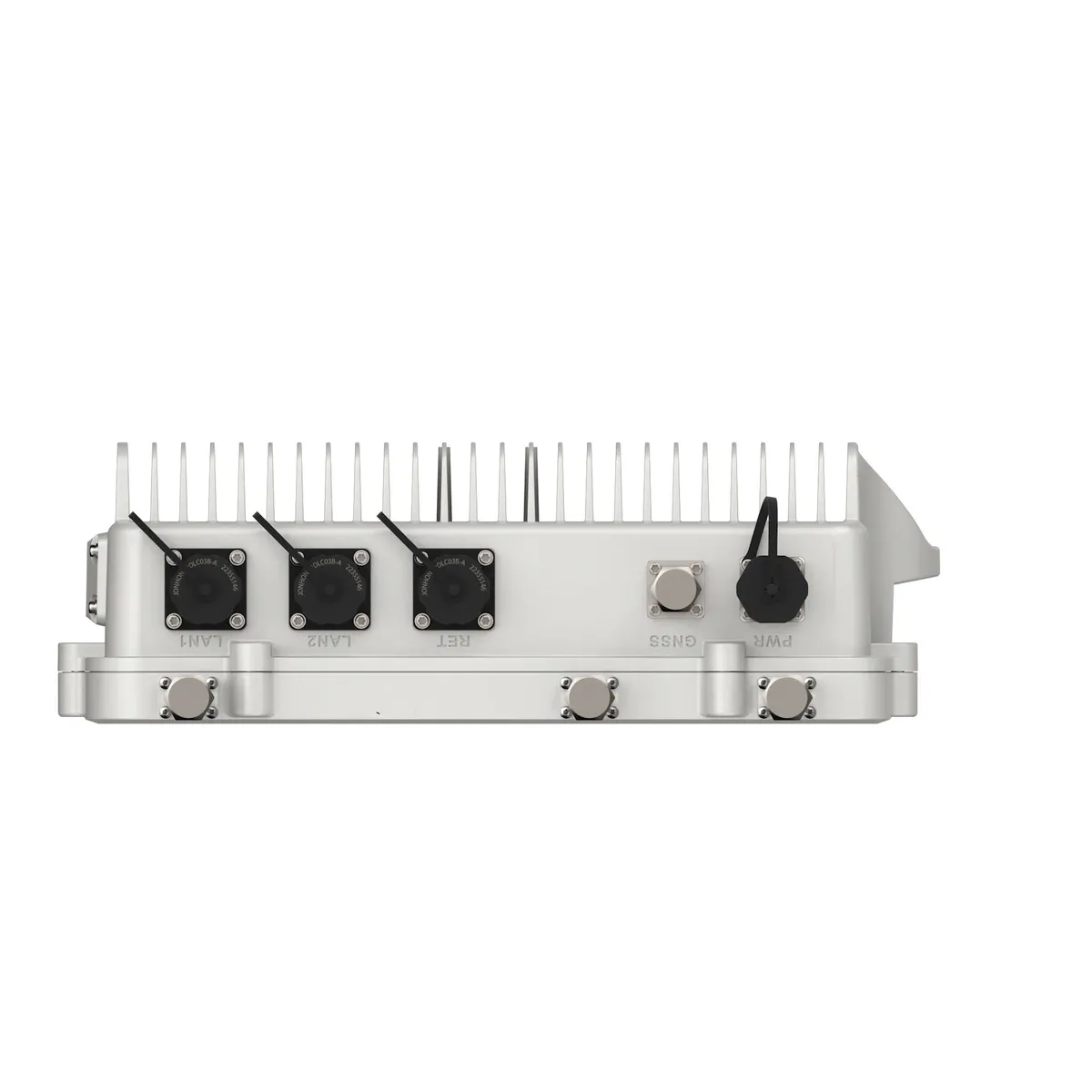

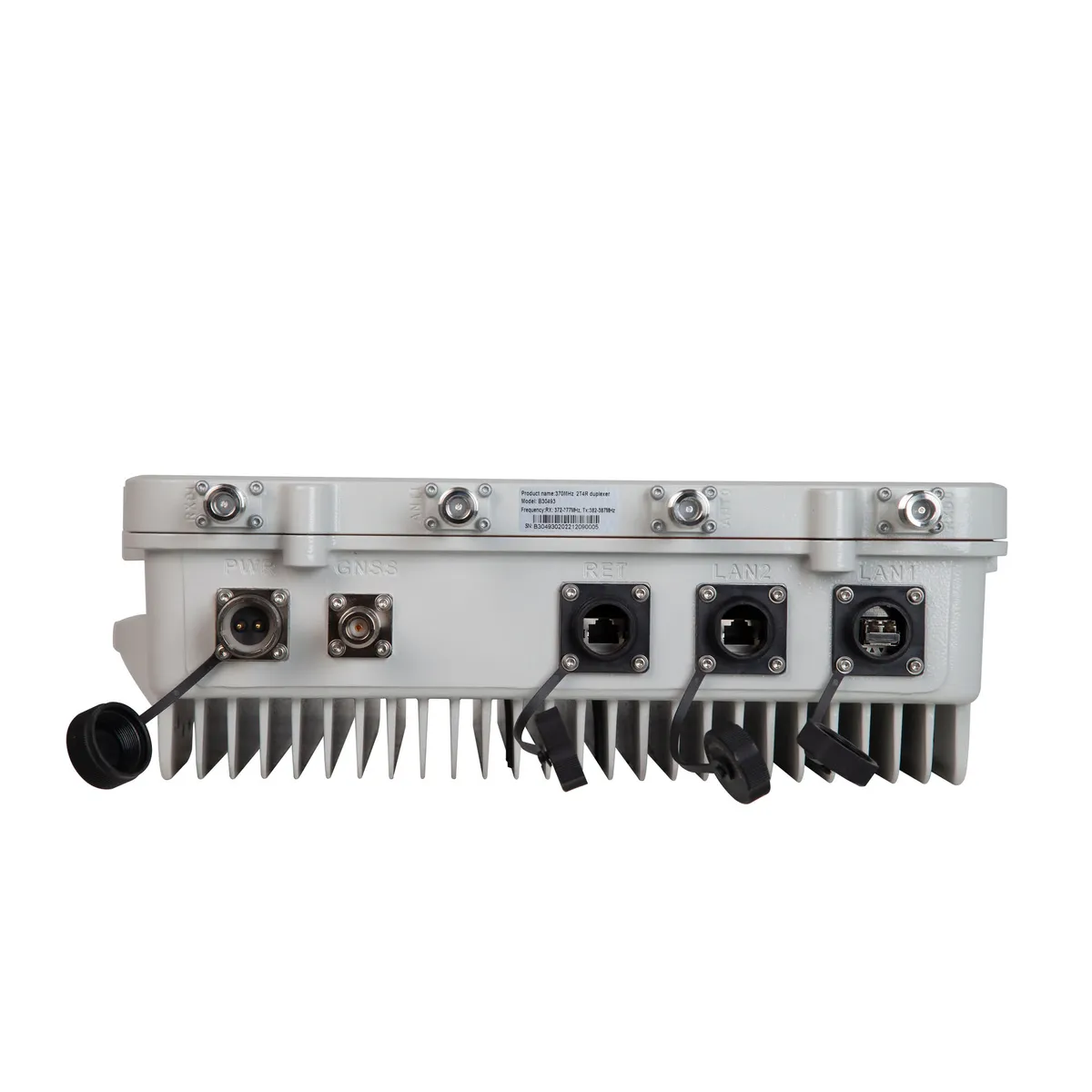

Transmission Interfaces
1×RJ45 + 1×SFP
Power Supply
DC 48 V / AC 220 V (with adapter)
Power Consumption
UHF: ≤350 W; VHF: ≤210 W
Clock Synchronisation
GPS/Beidou/Glonass/Galileo/PTP
Dimensions (H×W×D)
447 × 357 × 125 mm
Weight
≤16.7 kg
Operating Temperature
–40°C ~ +55°C
Storage Temperature
–40°C ~ +85°C
Relative Humidity
5% ~ 100% RH
IP Rating
IP68
Operating Pressure
70 kPa ~ 106 kPa
Wind Resistance
240 km/h
Lightning Protection
20 kA
MTBF
≥ 100,000 hours

Receiver

RX Sensitivity (Static)
-122 dBm @ BER 5%
Diversity
UHF: tri-diversity; VHF: dual-diversity
Co-channel Rejection
≥ –12 dB
Adjacent Channel Selectivity
≥ 60 dB
Blocking
≥ 84 dB
Intermodulation
≥ 70 dB
Spurious Response Rejection
≥ 70 dB
Conducted Spurious Emission
9 kHz–1 GHz: ≤ –57 dBm @100 kHz; 1–12.75 GHz: ≤ –47 dBm @1 MHz

Transmitter

TX Power (UHF)
2 carriers: ≤ 50 W; 4 carriers: ≤ 25 W; 8 carriers: ≤ 10 W
TX Power (VHF)
1 carrier: ≤ 50 W; 2 carriers: ≤ 25 W; 4 carriers: ≤ 10 W
Occupied Bandwidth
≤ 8.5 kHz
Modulation Accuracy
≤ 5%
Frequency Stability
±0.5 ppm
Intermodulation Rejection
UHF: ≤ –70 dB; VHF: ≤ –65 dB
Radiated/Conducted Emission
9 kHz–1 GHz: ≤ –36 dBm @100 kHz; 1–12.75 GHz: ≤ –30 dBm @1 MHz

Similar Products

Used In

Hytera DS6250S DMR Trunking Digital Base Station — Detail

Technical assessment

The Hytera DS6250S operates across UHF1: 415–445 MHz; VHF: 136–174 MHz. Several band versions exist; which one to buy follows from the frequency assigned to your organisation. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas. VHF carries further over open ground and water at the same power.

Ingress protection is IP68. IP67 and above means the device withstands immersion in one metre of water. The rating only holds if the fitted battery and the accessory jack cover carry the same class; a standard battery lowers the protection of the whole assembly.

Operating temperature range is –40°C ~ +55°C.
