Only the technical values that differ between models are listed; identical rows are omitted. Values are taken from the manufacturer’s published data sheets.
| Property | Hytera HP509 Professional DMR Handportable Radio | Hytera BD505LF Licence-Free DMR Handportable Radio | Hytera HP569 Professional DMR Handportable Radio | Hytera HP609 Professional DMR Handportable Radio |
|---|---|---|---|---|
| Frequency Range | UHF: 350-400 MHz / 400-470 MHz; VHF: 136-174 MHz | UHF: 446 MHz | UHF: 350-400 MHz / 400-470 MHz; VHF: 136-174 MHz | UHF: 400-527 MHz; VHF: 136-174 MHz |
| RF Output Power | UHF: 4W/1W; VHF: 5W/1W | 0.5 W | UHF: 4W/1W; VHF: 5W/1W | UHF: 4W/1W; VHF: 5W/1W |
| Channel Capacity | 256 | 48 | 512 | 1024 |
| Zone Capacity | 16 | 3 | 32 | 64 |
| Battery | 1500mAh | 1500mAh (Li-ion); 2000mAh (Li-ion) | 1500mAh | 2,000 mAh Li-polymer; 3,000 mAh smart Li-polymer (optional) |
| Battery Life | 15 hours (GNSS off); 13 hours (GNSS on) | Analogue: > 17 hours; digital: > 20 hours (5/5/90 duty cycle, high power) | 15 hours (GNSS off); 13 hours (GNSS on) | 20 hours (2,000 mAh, GNSS off), 16 hours (GNSS on); 30 hours (3,000 mAh, GNSS off), 24 hours (GNSS on) |
| Weight | 265g | 228 g (with BL1506 and antenna) | 270g | 265g |
| Dimensions (H×W×D) | 119 × 55 × 30.5 mm | 108 × 54.5 × 28 mm | 119 × 55 × 30.5 mm | 122 × 55 × 30.5 mm |
| Operating Temperature | −30°C to +60°C (radio); battery −20°C | -30°C ~ +60°C | −30°C to +60°C (radio); battery −20°C | -30°C ~ +60°C |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz | 25 kHz / 12.5 kHz | 12.5 kHz / 20 kHz / 25 kHz | 12.5 kHz / 20 kHz / 25 kHz |
| Operating Voltage | 7.4 V (nominal) | 7.4V | 7.4 V (nominal) | 7.7 V (nominal) |
| Sensitivity (Analogue) | 0.18 μV (12 dB SINAD); 0.16 μV (typical) | 0.18μV (12 dB SINAD) | 0.18 μV (12 dB SINAD); 0.16 μV (typical) | 0.16 μV (typical) (12 dB SINAD); 0.18 μV (12 dB SINAD) |
Hytera ACN02P PTT Microphone Cable
Hytera AN0141H06 VHF Antenna 136–147 MHz
Hytera AN0141H07 VHF Antenna 136–147 MHz
Hytera AN0141H08 VHF Antenna 136–147 MHz
Hytera AN0141H11 VHF Antenna 136–147 MHz
Hytera AN0143H08 VHF Antenna 136–150 MHz
Hytera AN0153H07 VHF Antenna 147–160 MHz
Hytera AN0153H08 VHF Antenna 147–160 MHz
Hytera AN0153H12 VHF Antenna 147–160 MHz
Hytera AN0153H13 VHF Antenna 147–160 MHz
Hytera AN0155H08 VHF Antenna 136–174 MHz
Hytera AN0155H09 VHF Antenna 136–174 MHz
Hytera AN0157H01 VHF Antenna 150–165 MHz
Hytera AN0157H02 VHF Antenna 150–165 MHz
Hytera AN0160H13 VHF Antenna 146–174 MHz
Hytera AN0160H16 VHF Antenna 145–175 MHz
Hytera AN0167H06 VHF Antenna 160–174 MHz
Hytera AN0167H07 VHF Antenna 160–174 MHz
Hytera AN0167H11 VHF Antenna 160–174 MHz
Hytera AN0167H12 VHF Antenna 160–174 MHz
Hytera AN0375H14 UHF Antenna 350–400 MHz
Hytera AN0375H18 UHF Antenna 350–400 MHz
Hytera AN0375H19 UHF Antenna 350–400 MHz
Hytera AN0375W06 UHF Antenna 350–400 MHz
Hytera AN0435H13 UHF Antenna 400–470 MHz
Hytera AN0435H21 UHF Antenna 400–470 MHz
Hytera AN0435H22 UHF Antenna 400–470 MHz
Hytera AN0435W09 UHF Antenna 400–470 MHz
Hytera BC48 Spring Belt Clip
Hytera BL1508 Li-Ion Battery 1500 mAh
Hytera BP3005 Li-Polymer Battery 3000 mAh
Hytera CH10L30 Smart Charger
Hytera CH10L34 Smart Two-Bay Charger
Hytera CHV09 Vehicle Power Adapter
Hytera EA01 Single-Wire Receive-Only Acoustic Tube Earpiece
Hytera EAN21P Three-Wire Acoustic Tube Earpiece
Hytera EAN24P Two-Wire Acoustic Tube Earpiece
Hytera EAN33P Covert Acoustic Tube Earpiece
Hytera EAS03 Receive-Only Acoustic Tube Earpiece
Hytera ECN21P Noise-Cancelling Headset
Hytera EH01 Receive-Only Earpiece
Hytera EH02 Receive-Only Earpiece
Hytera EHN26P C-Style Earpiece with Microphone
Hytera EHN40P D-Style Earpiece with Microphone
Hytera EHW07 Dual-PTT Bluetooth Headset
Hytera EHW08 Headset with Boom Microphone
Hytera ES01 Receive-Only In-Ear Earpiece
Hytera MCA26 Smart Battery Optimisation System
Hytera MCL39 Smart Multi-Unit Li-Ion Battery Charger
Hytera PC152 Programming and Data Cable, USB to 13-Pin
Hytera POA121 Finger PTT Button
Hytera PS1018 Switching Power Adapter
Hytera RO03 Nylon Strap
Hytera RO3 Nylon Strap
Hytera SM26N1P IP67 Remote Speaker Microphone
Hytera SM26N2P IP54 Remote Speaker Microphone
Hytera SM27W2 Wireless Remote Speaker Microphone

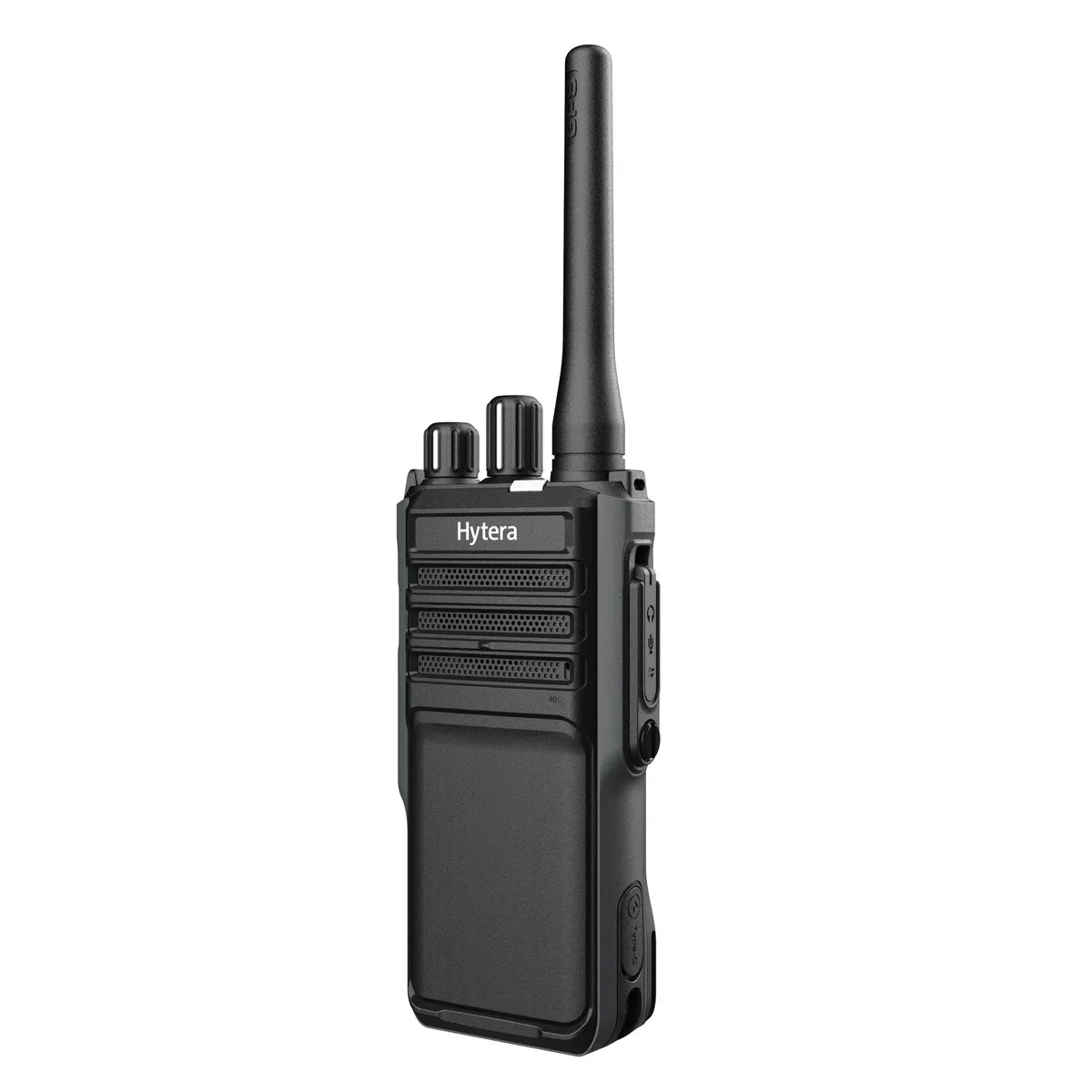

The Hytera HP509 operates across UHF: 350-400 MHz / 400-470 MHz; VHF: 136-174 MHz. Several band versions exist; which one to buy follows from the frequency assigned to your organisation. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas. VHF carries further over open ground and water at the same power.
RF output power is UHF: 4W/1W; VHF: 5W/1W. More power is not automatically better: it extends range and shortens battery life at the same time. Teams working close to a repeater are usually served by the low setting, which also lengthens the shift.
Capacity is 256 channels across 16 zones. A zone is a page of grouped channels — separate zones are defined for different sites, different shifts or joint working with another organisation. On a multi-site system that grows, this is what lets the channel plan be extended without a rebuild.
Battery 1500mAh, with a manufacturer-quoted life of 15 hours (GNSS off); 13 hours (GNSS on). That figure is measured against the 5/5/90 duty cycle: 5% of the time transmitting, 5% receiving, 90% standby. High power, analogue mode and cold weather all shorten it.
The manufacturer’s own figures show a marked reduction with location reporting enabled. Where fleet tracking is used, shift planning should follow the lower number.
Receiver sensitivity is 0.18 μV / BER 5%. Sensitivity states how weak a signal the radio can still decode, and a lower number is better. At the edge of coverage it determines range as much as transmit power does — communication usually fails not because the other party cannot hear, but because the radio cannot decode a weak signal.
Operating temperature range is −30°C to +60°C (radio); battery −20°C.
