The Hytera HP609 operates across UHF: 400-527 MHz; VHF: 136-174 MHz. Several band versions exist; which one to buy follows from the frequency assigned to your organisation. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas. VHF carries further over open ground and water at the same power.

RF output power is UHF: 4W/1W; VHF: 5W/1W. More power is not automatically better: it extends range and shortens battery life at the same time. Teams working close to a repeater are usually served by the low setting, which also lengthens the shift.

Capacity is 1024 channels across 64 zones. A zone is a page of grouped channels — separate zones are defined for different sites, different shifts or joint working with another organisation. On a multi-site system that grows, this is what lets the channel plan be extended without a rebuild.

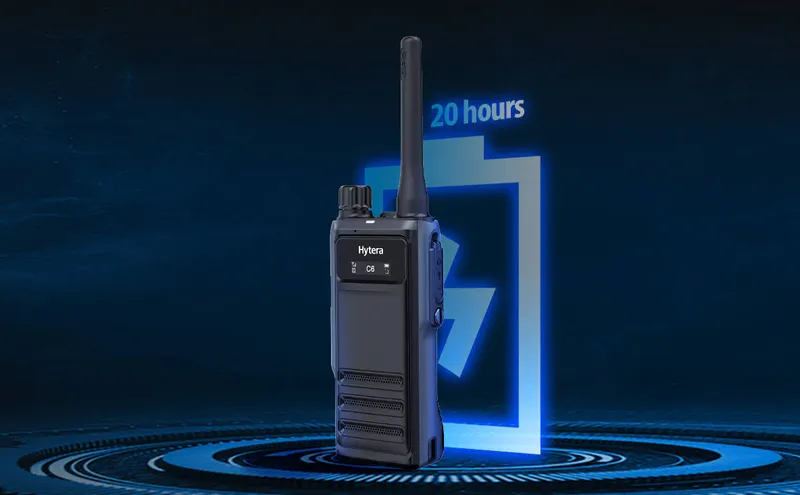

Battery 2,000 mAh Li-polymer; 3,000 mAh smart Li-polymer (optional), with a manufacturer-quoted life of 20 hours (2,000 mAh, GNSS off), 16 hours (GNSS on); 30 hours (3,000 mAh, GNSS off), 24 hours (GNSS on). That figure is measured against the 5/5/90 duty cycle: 5% of the time transmitting, 5% receiving, 90% standby. High power, analogue mode and cold weather all shorten it.

The manufacturer’s own figures show a marked reduction with location reporting enabled. Where fleet tracking is used, shift planning should follow the lower number.

Receiver sensitivity is 0.18 μV / BER 5%. Sensitivity states how weak a signal the radio can still decode, and a lower number is better. At the edge of coverage it determines range as much as transmit power does — communication usually fails not because the other party cannot hear, but because the radio cannot decode a weak signal.

Operating temperature range is -30°C ~ +60°C.
