Only the technical values that differ between models are listed; identical rows are omitted. Values are taken from the manufacturer’s published data sheets.
| Property | Hytera BD555 Professional DMR Handportable Radio | Hytera BD505 Professional DMR Handportable Radio | Hytera BD505LF Licence-Free DMR Handportable Radio | Hytera BD619 Professional DMR Handportable Radio |
|---|---|---|---|---|
| Frequency Range | UHF: 400-470 MHz; VHF: 136-174 MHz | UHF: 350-400MHz / 400-470MHz / 410-480MHz; VHF: 136-174 MHz | UHF: 446 MHz | UHF: 400-470 MHz; VHF: 136-174 MHz |
| RF Output Power | UHF low: 1 W; UHF high: 4 W; VHF low: 1 W; VHF high: 5 W | UHF low: 1 W; UHF high: 4 W; VHF low: 1 W; VHF high: 5 W | 0.5 W | UHF: 4W / 1W; VHF: 5W / 1W |
| Channel Capacity | 256 | 48 | 48 | 48 |
| Zone Capacity | 16 | 3 | 3 | 3 |
| Battery | Standard: 1,500 mAh (Li-ion); optional: 2,000 mAh (Li-ion) | Standard: 1,500 mAh (Li-ion); optional: 2,000 mAh (Li-ion) | 1500mAh (Li-ion); 2000mAh (Li-ion) | 1500mAh (Li-ion) |
| Battery Life | Analogue: 12 hours (1,500 mAh), 16 hours (2,000 mAh); digital: 16 hours (1,500 mAh), 22 hours (2,000 mAh) (5/5/90 duty cycle, high power) | Analogue: 12 hours (1,500 mAh), 16 hours (2,000 mAh); digital: 16 hours (1,500 mAh), 22 hours (2,000 mAh) (5/5/90 duty cycle, high power) | Analogue: > 17 hours; digital: > 20 hours (5/5/90 duty cycle, high power) | Digital: 16 hours; analogue: 12 hours (5/5/90 duty cycle, high power) |
| Weight | 250 g (with AN0435W09 and BL1506) | 236 g (with antenna and BL1506) | 228 g (with BL1506 and antenna) | 240 g (with standard battery and antenna) |
| Dimensions (H×W×D) | 109 × 54 × 32 mm | 108.6 × 54.5 × 32 mm | 108 × 54.5 × 28 mm | 110 × 55 × 32 mm |
| Operating Voltage | 7.2V | 7.2V | 7.4V | 7.2 V (nominal) |
| Adjacent Channel Selectivity | TIA-603: 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | TIA-603: 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | ETSI: 60 dB @ 12.5 kHz | TIA-603: 60 dB @ 12.5kHz / 70 dB @ 25 kHz |
| Intermodulation | TIA-603: 65 dB @ 12.5/25 kHz | TIA-603: 65 dB @ 12.5/25 kHz | ETSI: 65 dB @ 12.5 kHz | TIA-603: 65 dB @ 12.5 / 25 kHz |
| Spurious Response Rejection | TIA-603: 70 dB @ 12.5/25 kHz | TIA-603: 70 dB @ 12.5 / 25 kHz | ETSI: 70 dB @ 12.5 kHz | TIA-603: 65 dB @ 12.5 / 25 kHz |
Hytera ACM01 PTT Microphone Cable
Hytera AN0141H06 VHF Antenna 136–147 MHz
Hytera AN0141H07 VHF Antenna 136–147 MHz
Hytera AN0141H08 VHF Antenna 136–147 MHz
Hytera AN0141H11 VHF Antenna 136–147 MHz
Hytera AN0143H08 VHF Antenna 136–150 MHz
Hytera AN0153H07 VHF Antenna 147–160 MHz
Hytera AN0153H08 VHF Antenna 147–160 MHz
Hytera AN0153H12 VHF Antenna 147–160 MHz
Hytera AN0153H13 VHF Antenna 147–160 MHz
Hytera AN0155H08 VHF Antenna 136–174 MHz
Hytera AN0155H09 VHF Antenna 136–174 MHz
Hytera AN0157H01 VHF Antenna 150–165 MHz
Hytera AN0157H02 VHF Antenna 150–165 MHz
Hytera AN0160H13 VHF Antenna 146–174 MHz
Hytera AN0160H16 VHF Antenna 145–175 MHz
Hytera AN0167H06 VHF Antenna 160–174 MHz
Hytera AN0167H07 VHF Antenna 160–174 MHz
Hytera AN0167H11 VHF Antenna 160–174 MHz
Hytera AN0167H12 VHF Antenna 160–174 MHz
Hytera AN0360H16 UHF Antenna 350–370 MHz
Hytera AN0375H14 UHF Antenna 350–400 MHz
Hytera AN0375H18 UHF Antenna 350–400 MHz
Hytera AN0375H19 UHF Antenna 350–400 MHz
Hytera AN0375W06 UHF Antenna 350–400 MHz
Hytera AN0415W08 UHF Antenna 400–430 MHz
Hytera AN0425H02 UHF Antenna 400–450 MHz
Hytera AN0435H13 UHF Antenna 400–470 MHz
Hytera AN0435H21 UHF Antenna 400–470 MHz
Hytera AN0435H22 UHF Antenna 400–470 MHz
Hytera AN0435W09 UHF Antenna 400–470 MHz
Hytera AN0445H03 UHF Antenna 420–470 MHz
Hytera AN0445W04 UHF Antenna 420–470 MHz
Hytera AN0445W05 UHF Antenna 410–480 MHz
Hytera AN0455H012 UHF Antenna 440–470 MHz
Hytera AN0460H12 UHF Antenna 450–470 MHz
Hytera AN0460H13 UHF Antenna 450–470 MHz
Hytera AN0460W19 UHF Antenna 440–470 MHz
Hytera AN0465H03 UHF Antenna 440–490 MHz
Hytera AN0485H05 UHF Antenna 450–520 MHz
Hytera AN0485H15 UHF Antenna 450–520 MHz
Hytera AN0485H16 UHF Antenna 450–520 MHz
Hytera AN0495W04 UHF Antenna 470–520 MHz
Hytera BL1506 Li-Ion Battery 1500 mAh
Hytera BL2018 Li-Ion Battery 2000 mAh
Hytera CH10L23 Desktop Charger
Hytera EA01 Single-Wire Receive-Only Acoustic Tube Earpiece
Hytera EAS03 Receive-Only Acoustic Tube Earpiece
Hytera EH01 Receive-Only Earpiece
Hytera EH02 Receive-Only Earpiece
Hytera EHM15A D-Style Earpiece
Hytera EHM18A Earpiece with In-Line Microphone
Hytera ES01 Receive-Only In-Ear Earpiece
Hytera ESW01 Wireless Bluetooth Headset
Hytera MCL19 Multi-Unit Charger
Hytera NCN011 Carry Case
Hytera NCN019 Chest Harness
Hytera PC76 Programming Cable, USB to 2-Pin
Hytera POA121 Finger PTT Button
Hytera PS1018 Switching Power Adapter
Hytera SM26M1 Remote Speaker Microphone
Hytera SM50M1 Palm Microphone

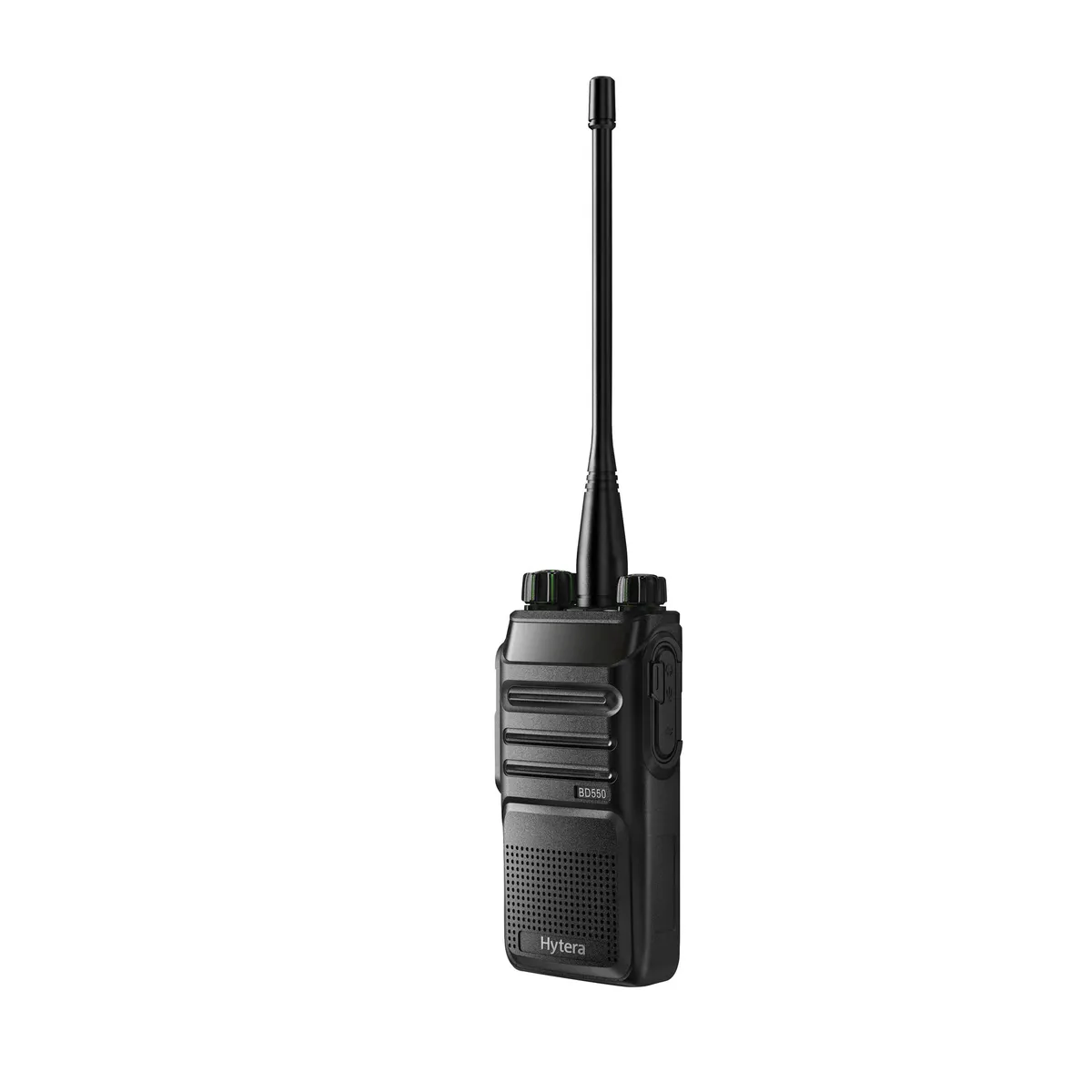

The Hytera BD555 operates across UHF: 400-470 MHz; VHF: 136-174 MHz. Several band versions exist; which one to buy follows from the frequency assigned to your organisation. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas. VHF carries further over open ground and water at the same power.
RF output power is UHF low: 1 W; UHF high: 4 W; VHF low: 1 W; VHF high: 5 W. More power is not automatically better: it extends range and shortens battery life at the same time. Teams working close to a repeater are usually served by the low setting, which also lengthens the shift.
Capacity is 256 channels across 16 zones. A zone is a page of grouped channels — separate zones are defined for different sites, different shifts or joint working with another organisation. On a multi-site system that grows, this is what lets the channel plan be extended without a rebuild.
Battery Standard: 1,500 mAh (Li-ion); optional: 2,000 mAh (Li-ion), with a manufacturer-quoted life of Analogue: 12 hours (1,500 mAh), 16 hours (2,000 mAh); digital: 16 hours (1,500 mAh), 22 hours (2,000 mAh) (5/5/90 duty cycle, high power). That figure is measured against the 5/5/90 duty cycle: 5% of the time transmitting, 5% receiving, 90% standby. High power, analogue mode and cold weather all shorten it.
Receiver sensitivity is 0.18μV / BER 5%. Sensitivity states how weak a signal the radio can still decode, and a lower number is better. At the edge of coverage it determines range as much as transmit power does — communication usually fails not because the other party cannot hear, but because the radio cannot decode a weak signal.
Operating temperature range is -30°C ~ +60°C.
The digital protocol is ETSI-TS102 361-1,-2,-3 — the ETSI DMR standard. Basic communication with other manufacturers’ radios is possible in standard Tier II mode; advanced trunking, vendor encryption and fleet management features do not carry across brands.
