Only the technical values that differ between models are listed; identical rows are omitted. Values are taken from the manufacturer’s published data sheets.
| Property | Hytera PT590 Mission-Critical TETRA Handportable Radio | Hytera MT680 Plus Mission-Critical TETRA Mobile Radio | Hytera PT560H Mission-Critical TETRA Handportable Radio |
|---|---|---|---|
| Frequency Range | 380-475 MHz (Fv), 806-870 MHz (F5) | 320-380 MHz; 380-430 MHz; 405-475 MHz; 806-870 MHz | 380-430 MHz |
| RF Output Power | 3 W | 10 W | 3 W |
| Display | 2.4 in transflective TFT LCD, 320×240 px | 2.8 in colour TFT, 320×240 px | 1.8 in, 160×128 px, 262,144 colours |
| Weight | 285 g | Transceiver: 1,643 g; remote head: 398.5 g; standard: 1,853 g | 368 g (with standard battery and antenna) |
| Dimensions (H×W×D) | 125 x 55 x 31 mm | Remote head: 70 × 184 × 66 mm; main unit: 70 × 184 × 177.6 mm; standard: 70 × 184 × 186 mm | 127.5 mm × 55 mm × 36.5 mm |
| Operating Temperature | −20°C to +60°C (limited performance: −30°C to +70°C) | -30°C ~ +60°C | -30℃ ~ +60℃ |
| Operating Voltage | 7.7 V | 13.2 V (10.8-15.6 V) | 7.4 V |
| Contact List | 5,000 users | 2,000 users | 2,000 users |
| Receiver Class | ETSI EN 392-2/396-2 Class A and B | ETSI EN 392-2/396-2 Class A and B | ETSI EN 392-2/396-2 Class A/B |
| Receiver Sensitivity (Static) | ≤-118 dBm (typ: -120 dBm) (380-475 MHz), ≤-117 dBm (typ: -119 dBm) (806-870 MHz) | ≤-116 dBm (typ:-118 dBm) | ≤-116 dBm (typical -118 dBm) |
| Receiver Sensitivity (Dynamic) | -108 dBm (Min), -110 dBm (Typ) | ≤-106 dBm (typ:-108 dBm) | ≤-107 dBm (typical -109 dBm) |
| Location Accuracy | < 1.0 m (95% probability, −130 dBm) | ≤ 2.5 m (50% probability, −130 dBm) | ≤ 2.5 m (50% probability, −130 dBm) |
Hytera ACN02P PTT Microphone Cable
Hytera BC48 Spring Belt Clip
Hytera BP2003 Smart Li-Ion Polymer Battery 2000 mAh
Hytera CH10L30 Smart Charger
Hytera CH10L34 Smart Two-Bay Charger
Hytera CHV09 Vehicle Power Adapter
Hytera EA01 Single-Wire Receive-Only Acoustic Tube Earpiece
Hytera EAN21P Three-Wire Acoustic Tube Earpiece
Hytera EAN24P Two-Wire Acoustic Tube Earpiece
Hytera EAS03 Receive-Only Acoustic Tube Earpiece
Hytera ECN21P Noise-Cancelling Headset
Hytera EH01 Receive-Only Earpiece
Hytera EH02 Receive-Only Earpiece
Hytera EHN26P C-Style Earpiece with Microphone
Hytera EHW08 Headset with Boom Microphone
Hytera ES01 Receive-Only In-Ear Earpiece
Hytera LCY030 Leather Carry Case
Hytera MCA26 Smart Battery Optimisation System
Hytera MCL39 Smart Multi-Unit Li-Ion Battery Charger
Hytera PC152 Programming and Data Cable, USB to 13-Pin
Hytera POA121 Finger PTT Button
Hytera PS1018 Switching Power Adapter
Hytera RO03 Nylon Strap
Hytera RO3 Nylon Strap
Hytera SM26N1P IP67 Remote Speaker Microphone
Hytera SM26N2P IP54 Remote Speaker Microphone

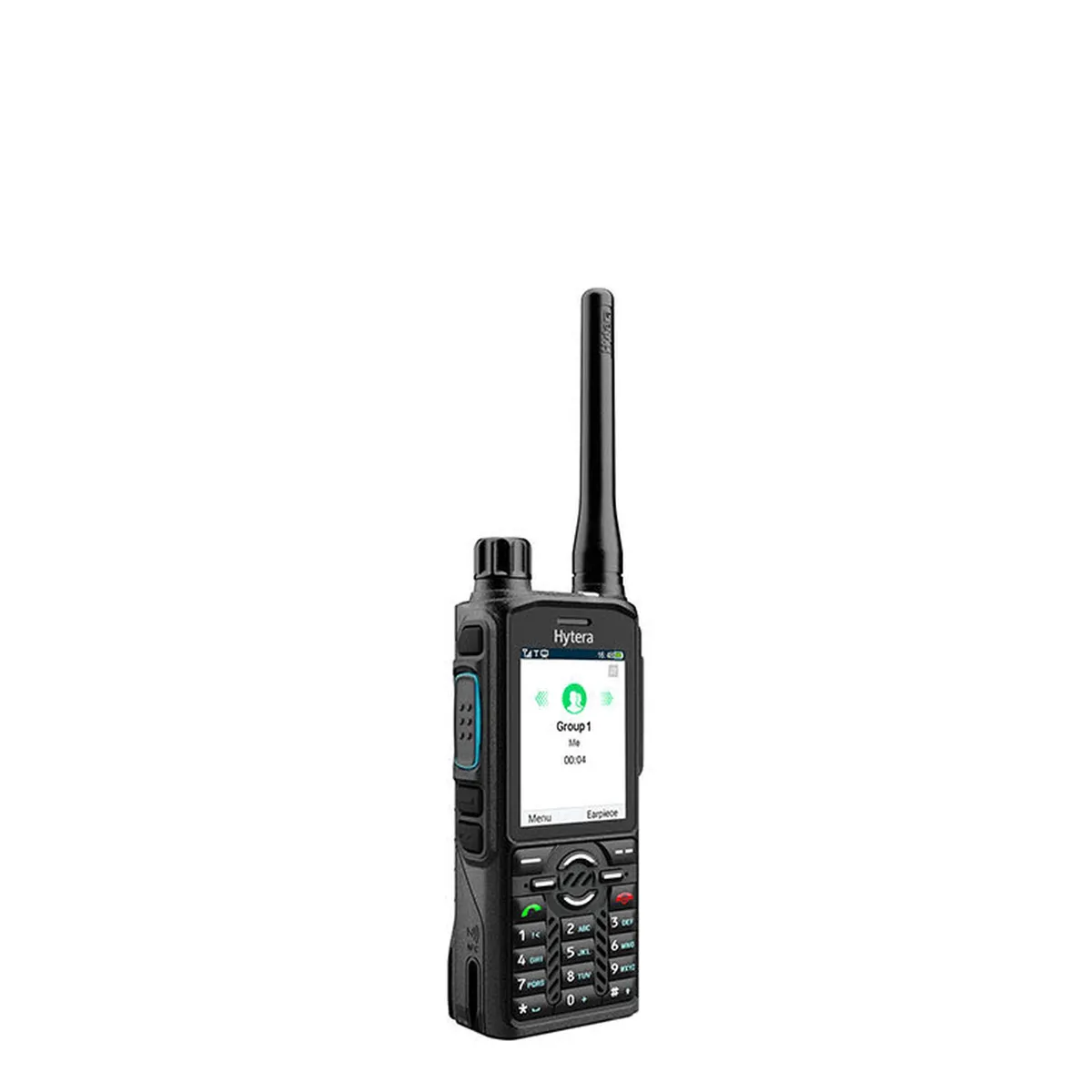

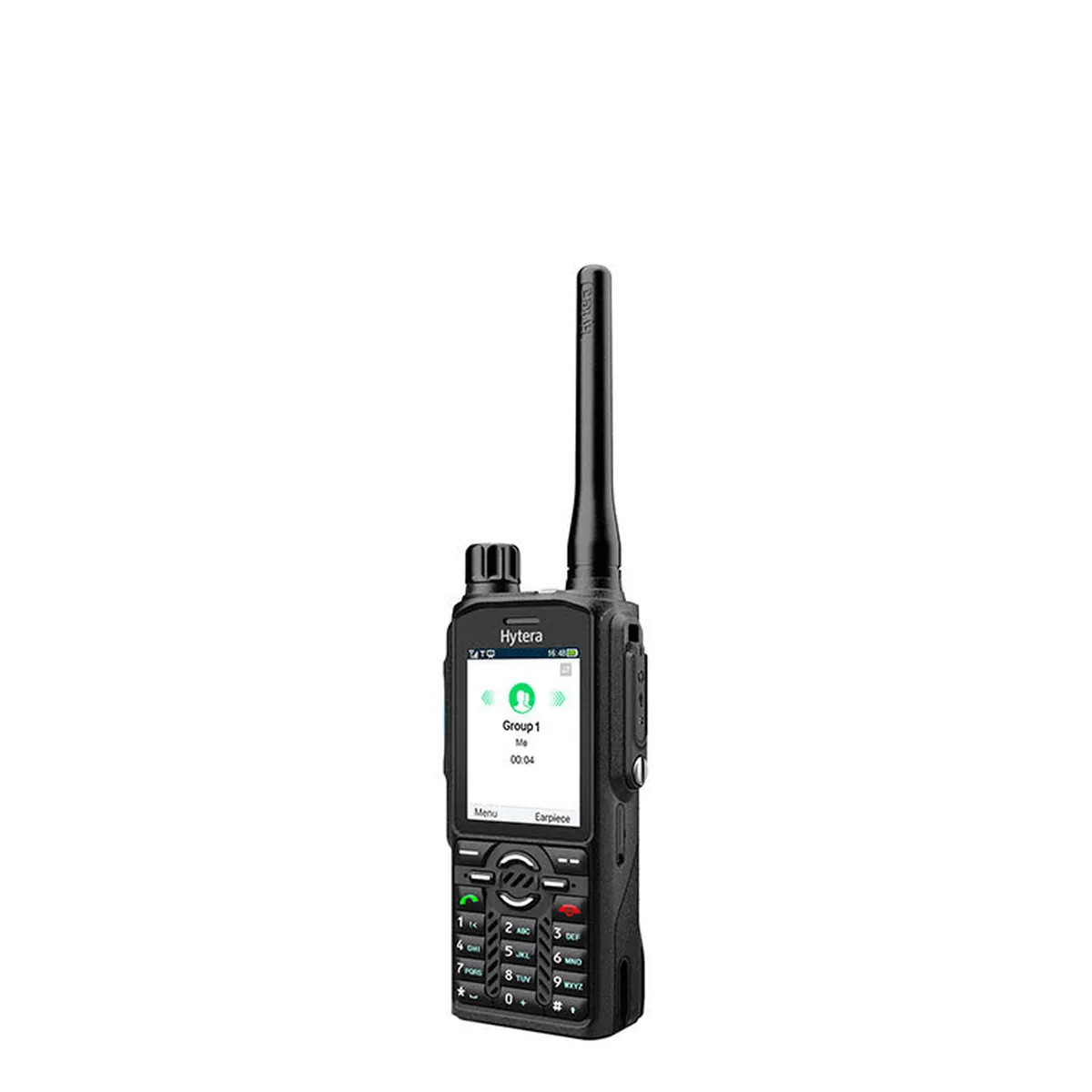

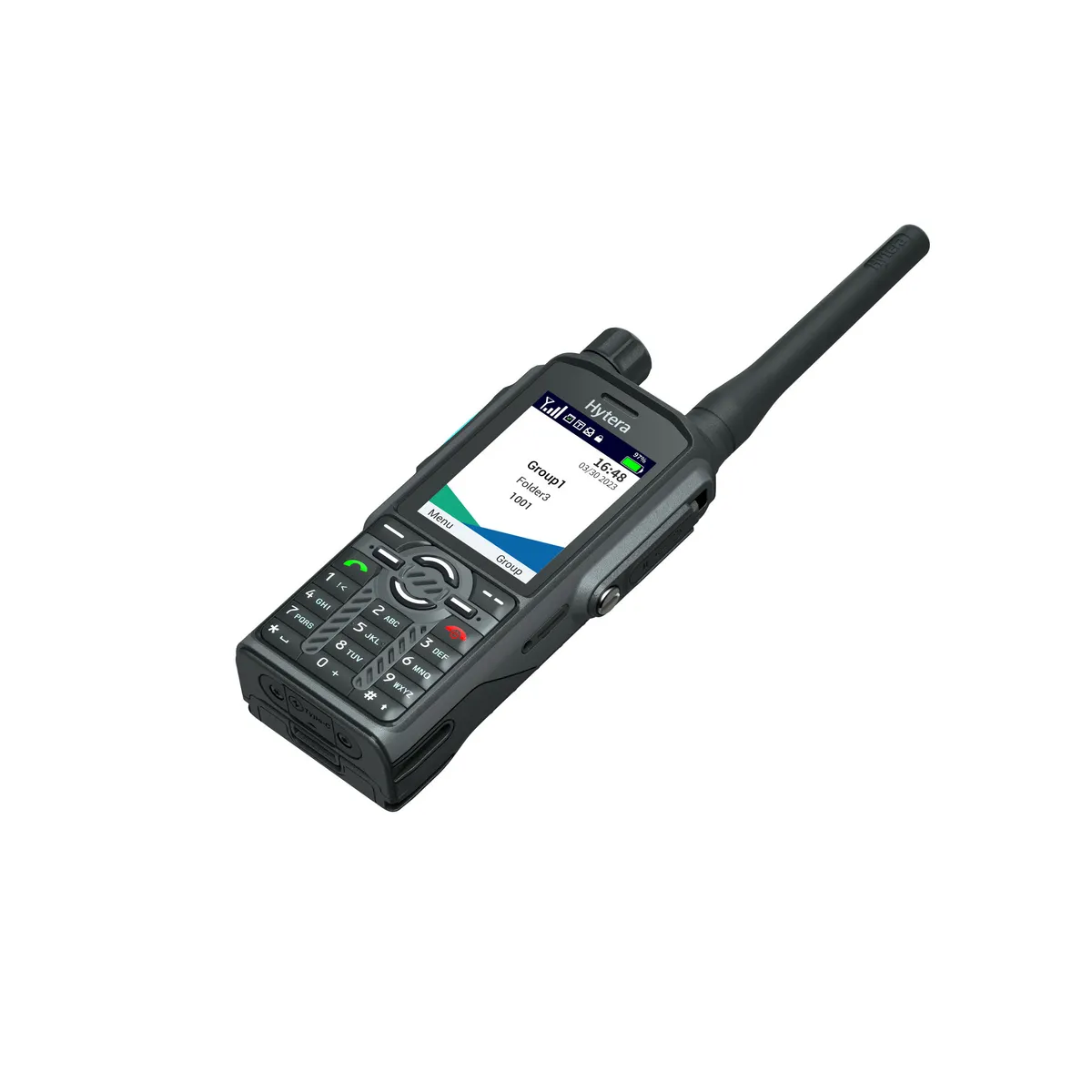

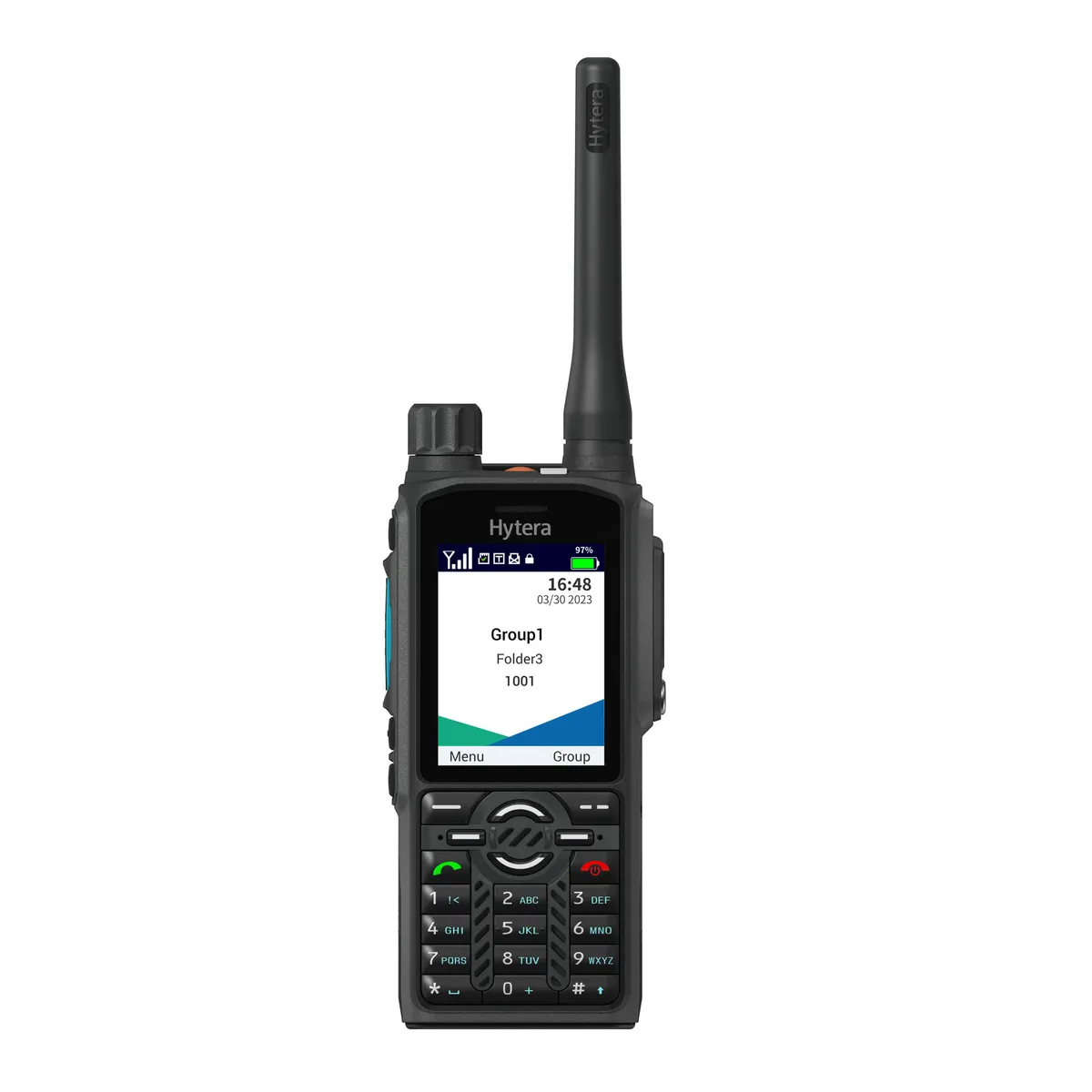

The Hytera PT590 operates across 380-475 MHz (Fv), 806-870 MHz (F5). Several band versions exist; which one to buy follows from the frequency assigned to your organisation. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas. The 700/800 MHz band is used for public safety and specially assigned systems.
RF output power is 3 W. More power is not automatically better: it extends range and shortens battery life at the same time. Teams working close to a repeater are usually served by the low setting, which also lengthens the shift.
Battery 2000mAh Li-polymer, with a manufacturer-quoted life of > 22 hours (380–475 MHz), > 20 hours (806–870 MHz). That figure is measured against the 5/5/90 duty cycle: 5% of the time transmitting, 5% receiving, 90% standby. High power, analogue mode and cold weather all shorten it.
Operating temperature range is −20°C to +60°C (limited performance: −30°C to +70°C).
