The Hytera AP325 operates across 400-440 MHz, 430-470 MHz. UHF passes between walls and obstructions more readily, which is why it is preferred inside buildings, industrial plants and dense urban areas.

RF output power is 3W/1W. More power is not automatically better: it extends range and shortens battery life at the same time. Teams working close to a repeater are usually served by the low setting, which also lengthens the shift.

Capacity is 32 channels across 2 zones. A zone is a page of grouped channels — separate zones are defined for different sites, different shifts or joint working with another organisation. On a multi-site system that grows, this is what lets the channel plan be extended without a rebuild.

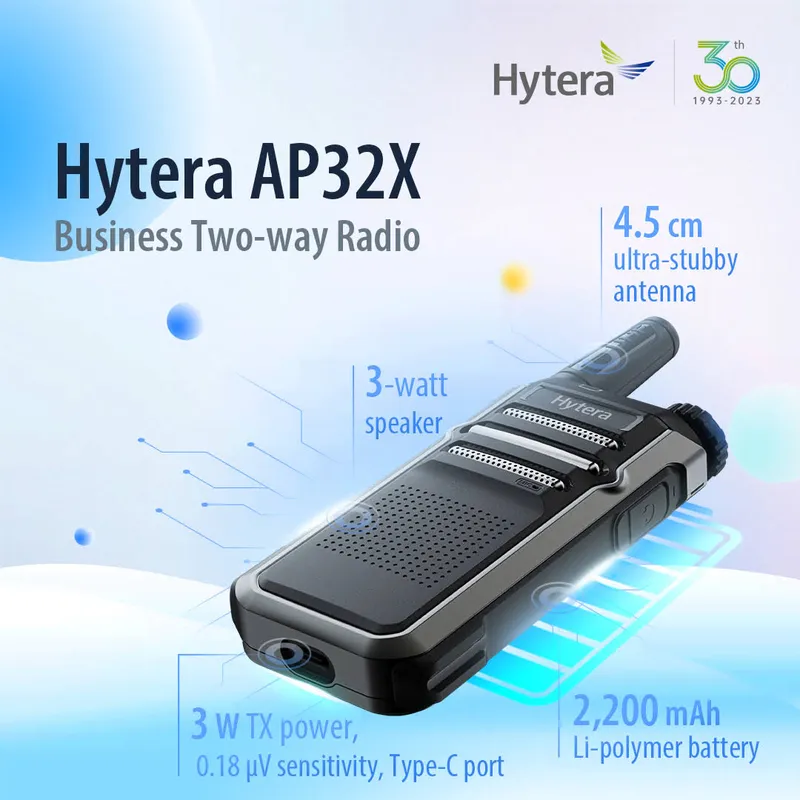

Battery 2,200mAh Li-Polymer, with a manufacturer-quoted life of 10 hours (5/5/90, high power). That figure is measured against the 5/5/90 duty cycle: 5% of the time transmitting, 5% receiving, 90% standby. High power, analogue mode and cold weather all shorten it.

Receiver sensitivity is 0.18 μV (12dB SINAD). Sensitivity states how weak a signal the radio can still decode, and a lower number is better. At the edge of coverage it determines range as much as transmit power does — communication usually fails not because the other party cannot hear, but because the radio cannot decode a weak signal.
