Specifications

General

Dimensions
113.20 x 53.73 x 22.84 mm
Weight
135 g
Nominal Capacity
2400 mAh
Nominal Voltage
7.2 V
Operating Temperature
0~60℃ (charge); -20~60℃ (discharge)
Storage Temperature
-20~+40℃ (3 months); 20±5°C (over 3 months)
IP Rating
IP67

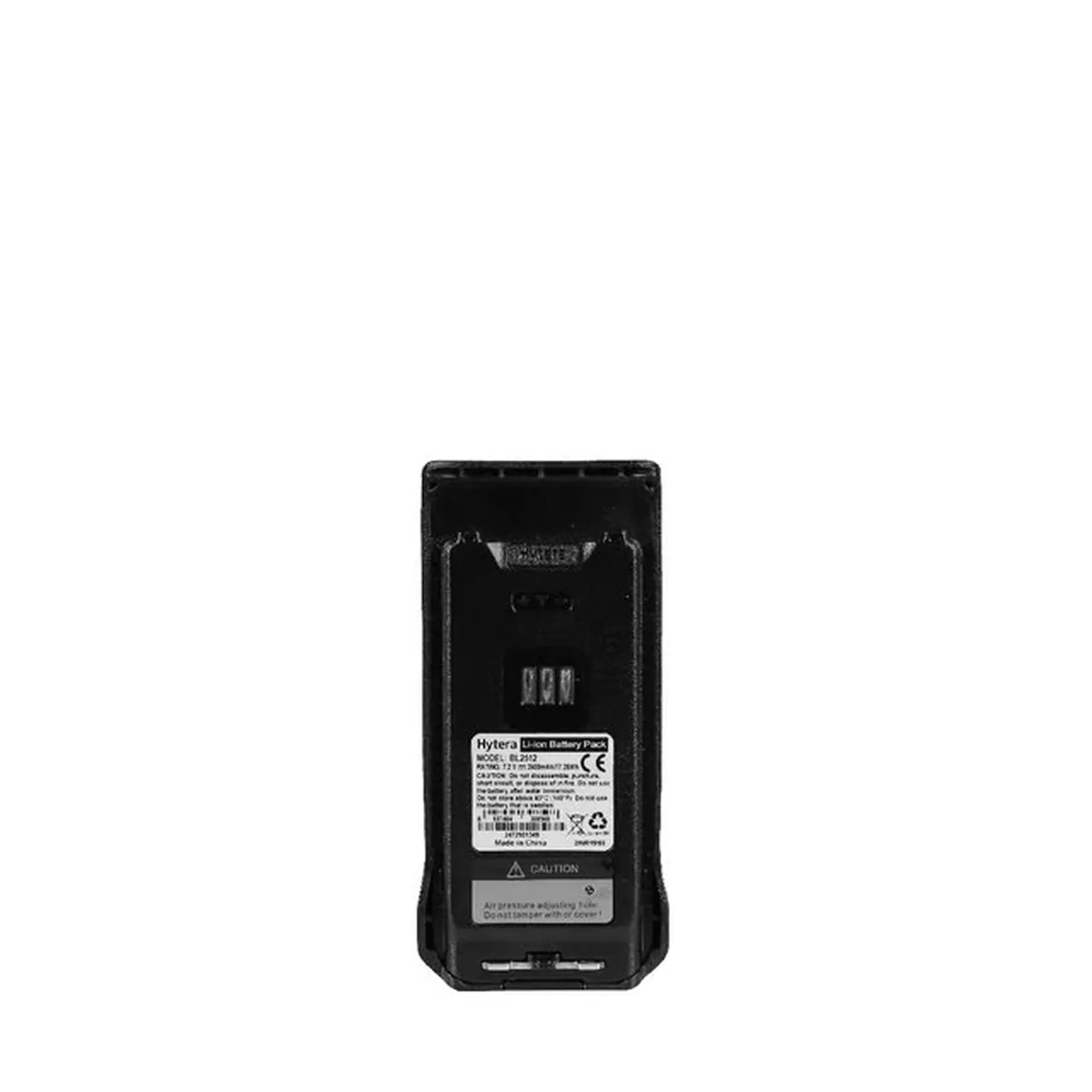

Hytera BL2512 Li-Polymer Battery 2400 mAh — Detail

Technical assessment

Rated capacity is 2400 mAh at 7.2 V. Capacity is the honest figure to compare between packs; quoted operating hours depend on the 5/5/90 duty cycle and fall with high power, analogue mode and cold weather.

Ingress protection is IP67. The rating of a radio holds only if the fitted battery carries the same class; a lower-rated pack lowers the protection of the whole assembly.

Operating temperature range is 0~60℃ (charge); -20~60℃ (discharge).
