Specifications

General

Dimensions
86.3 × 62.1 × 43.8 mm
Weight
Approx. 160 g
Colour
Black
PTT Button
Yes
Emergency Button
Yes
Microphone Sensitivity
–42 ±3 dB @ 1 kHz 3.0 V 2.2 KΩ; 0 dB = 1 V/Pa
Speaker Power
1 W (nominal); 2 W (max.)
Speaker Impedance
20 Ω ±15% @ 1 kHz
Frequency Response
78 ±3 dB @ 1 kHz 1 W/30 cm
IP Rating
IP67
Explosion Resistance
Ex level ib IIC
Operating Temperature
-20℃ ~ 50℃
Storage Temperature
-40℃ ~ 85℃

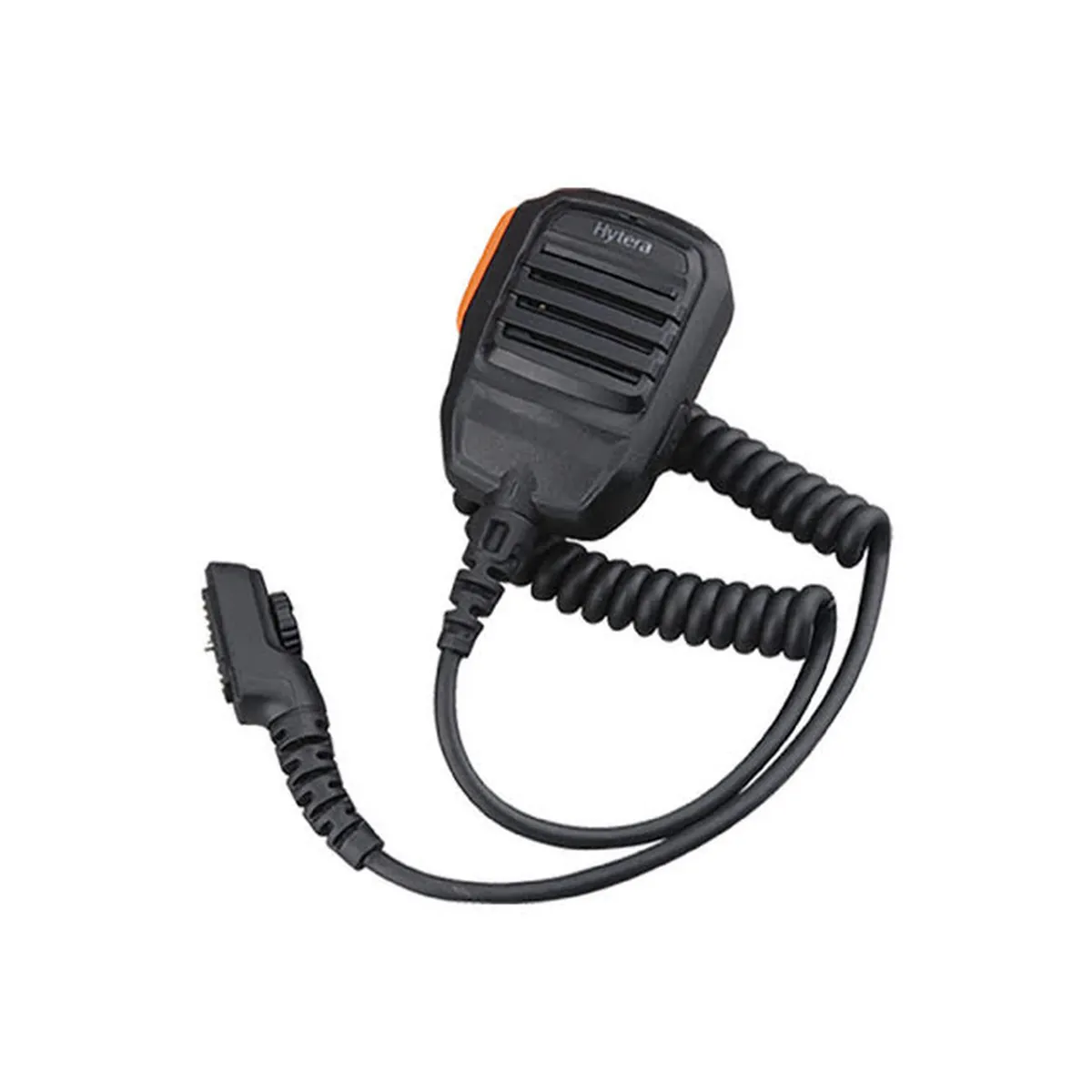

Hytera SM18N4Ex IP67 Intrinsically Safe Remote Speaker Microphone — Detail

Technical assessment

Audio accessories decide whether coverage is usable. A radio heard perfectly on a bench is not heard at all over a running plant, and the resulting complaint is normally reported as poor coverage rather than as the wrong accessory.

Speaker output is 1 W (nominal); 2 W (max.).

PTT button: Yes. Emergency button: Yes. An emergency control that cannot be operated through the gloves worn on site is not an emergency control, which is worth testing with the actual gloves before ordering a fleet.

Ingress protection is IP67. Accessory connectors are where dust and moisture do their damage first; a cover that is actually used extends the life of the accessory more than the rating does.

Operating temperature range is -20℃ ~ 50℃.
